Introduction
Welcome to our comprehensive guide on outdoor electrical boxes! If you’re looking to add electricity to your outdoor space, or you’re a professional electrician looking for the latest information on outdoor electrical boxes, you’ve come to the right place. In this article, we’ll cover everything you need to know about outdoor electrical boxes, from their types and uses to safety measures and installation tips. So, let’s dive in!
What is an Outdoor Electrical Box?

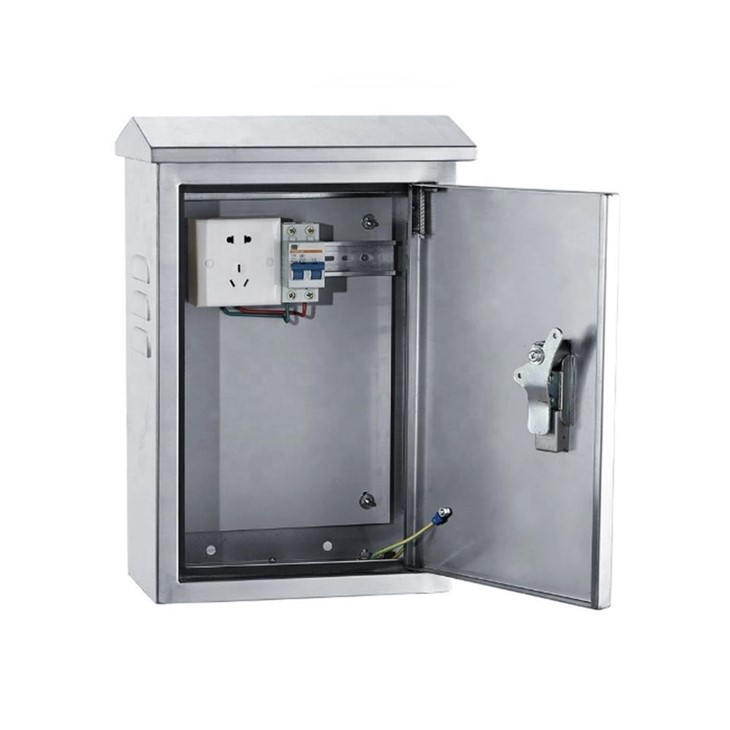

An outdoor electrical box, also known as a weatherproof enclosure or an outdoor junction box, is a container that houses electrical components in outdoor spaces. These boxes protect electrical connections, switches, outlets, or other components from environmental factors like rain, snow, dust, and heat. Outdoor electrical boxes are essential for outdoor lighting, landscape lighting, pool and spa wiring, and other outdoor electrical projects.
Types of Outdoor Electrical Boxes
There are various types of outdoor electrical boxes, and each serves a specific purpose. Here are the most common types of outdoor electrical boxes:
| Type | Description |
|---|---|

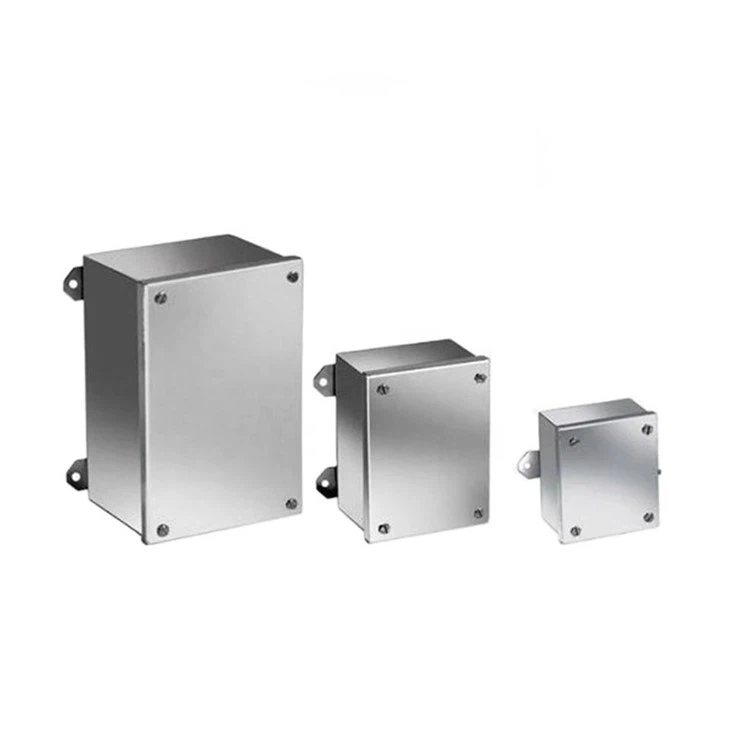

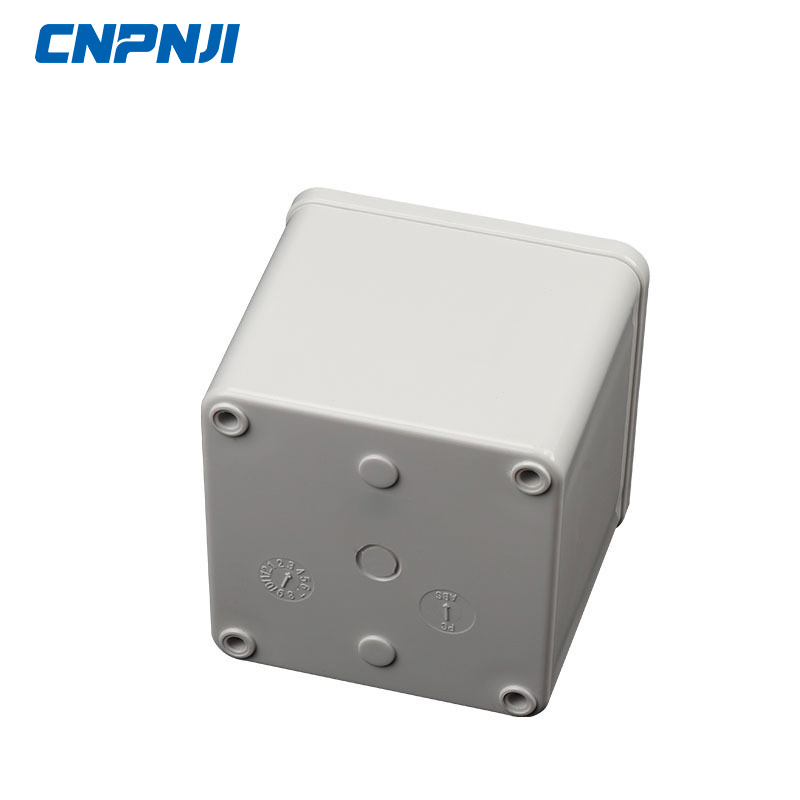

| 1. Junction box | A general-purpose box that connects two or more wires |

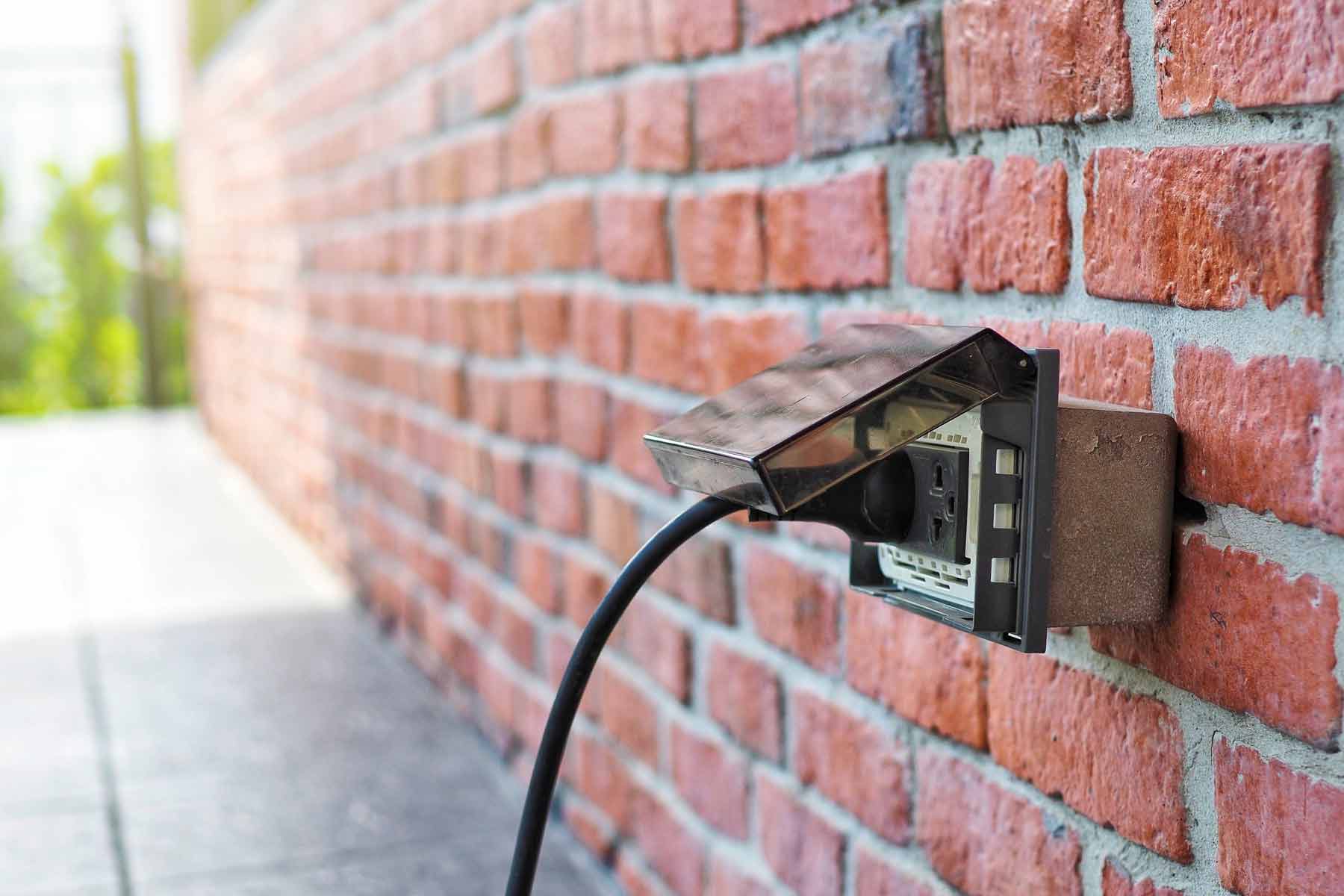

| 2. Switch/outlet box | A box that houses a switch, an outlet, or both |
| 3. Transformer enclosure | An enclosure that houses a low-voltage transformer for landscape lighting |
| 4. GFCI enclosure | An enclosure that houses a ground fault circuit interrupter (GFCI) |

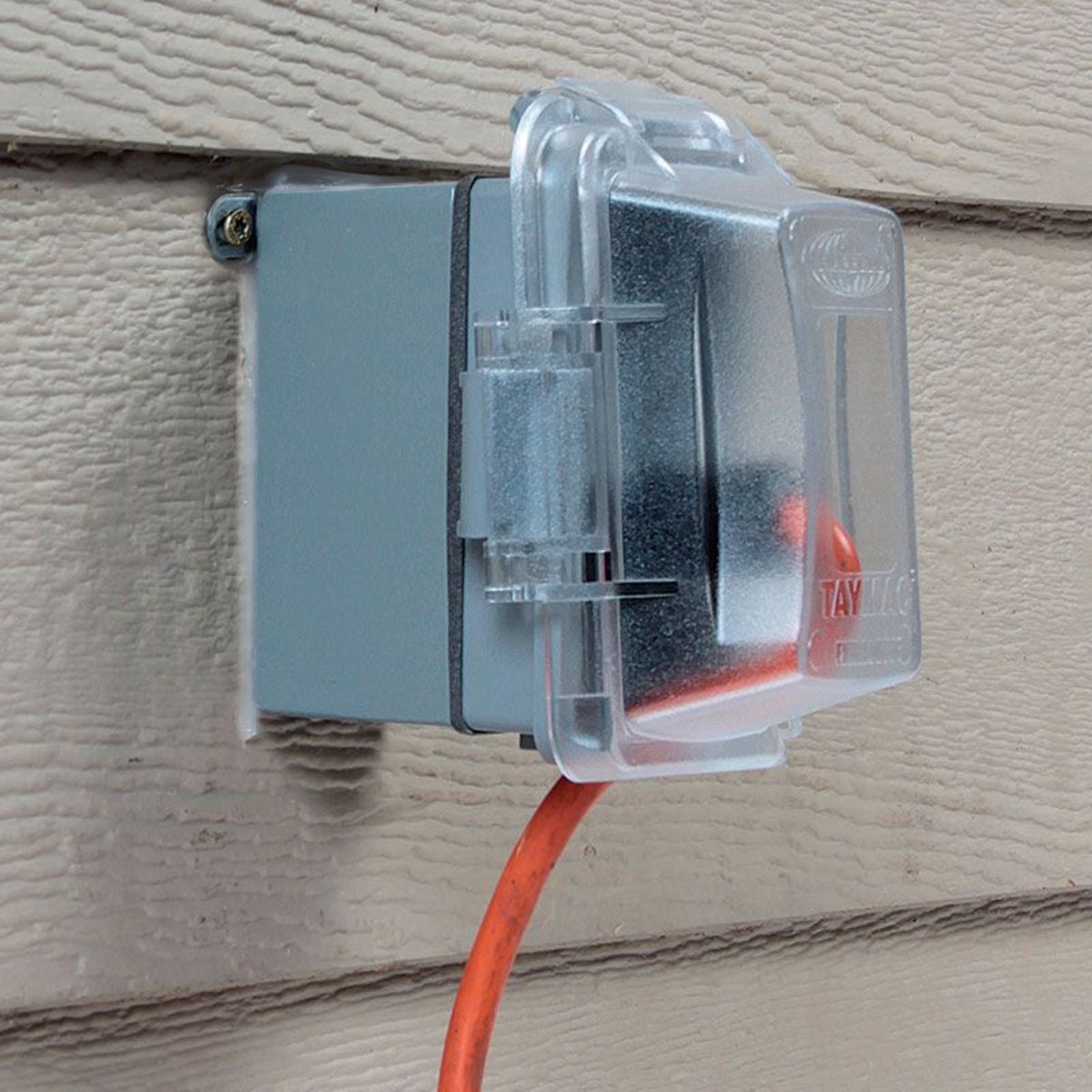

| 5. Weatherproof cover | A cover that fits over an existing outdoor box to protect it from the elements |
Safety Measures
Working with electricity can be dangerous, so it’s essential to take safety measures when using outdoor electrical boxes. Here are some tips to follow:
- Always turn off the power before working with electrical components
- Use outdoor electrical boxes that are UL listed and approved for their intended use
- Wear protective gear, such as rubber gloves and goggles
- Follow the manufacturer’s instructions when installing or wiring an outdoor electrical box
- Inspect outdoor electrical boxes regularly for signs of wear and tear, and replace them as needed
Installation Tips
Installing an outdoor electrical box requires some planning and preparation. Here are some tips to follow:
- Determine the location and purpose of the outdoor electrical box
- Choose the right type of box for your needs
- Ensure the box is weatherproof and can withstand the elements
- Run conduit or cable from the main electrical panel to the outdoor box
- Connect the wires to the appropriate terminals or connectors inside the box
- Secure the box to the wall or post using screws or brackets
- Test the electrical connection to ensure it’s working correctly
FAQs
1. What is the difference between an indoor and an outdoor electrical box?
The main difference between indoor and outdoor electrical boxes is that outdoor boxes are weatherproof and designed to protect electrical components from environmental factors like rain, snow, dust, and heat. Indoor boxes are not weatherproof and are designed for indoor use only.
2. Can I install an indoor electrical box outside?
No, you should never install an indoor electrical box outside. Indoor boxes are not weatherproof and can lead to electrical hazards and damage to the electrical components. Always use outdoor electrical boxes for outdoor electrical projects.
3. What material are outdoor electrical boxes made of?
Outdoor electrical boxes are made of various materials, including plastic, metal, and fiberglass. Each material has different properties, such as durability, resistance to corrosion, and compatibility with different electrical components.
4. Can I install an outdoor electrical box myself?
If you have experience working with electrical components and wiring, you can install an outdoor electrical box yourself. However, if you’re not familiar with electrical wiring, it’s best to hire a licensed electrician to do the job.
5. Do I need a permit to install an outdoor electrical box?
Yes, you need a permit to install an outdoor electrical box. The requirements for obtaining a permit may vary depending on your location and the type of project you’re working on. Contact your local building department to find out the regulations and requirements for your area.

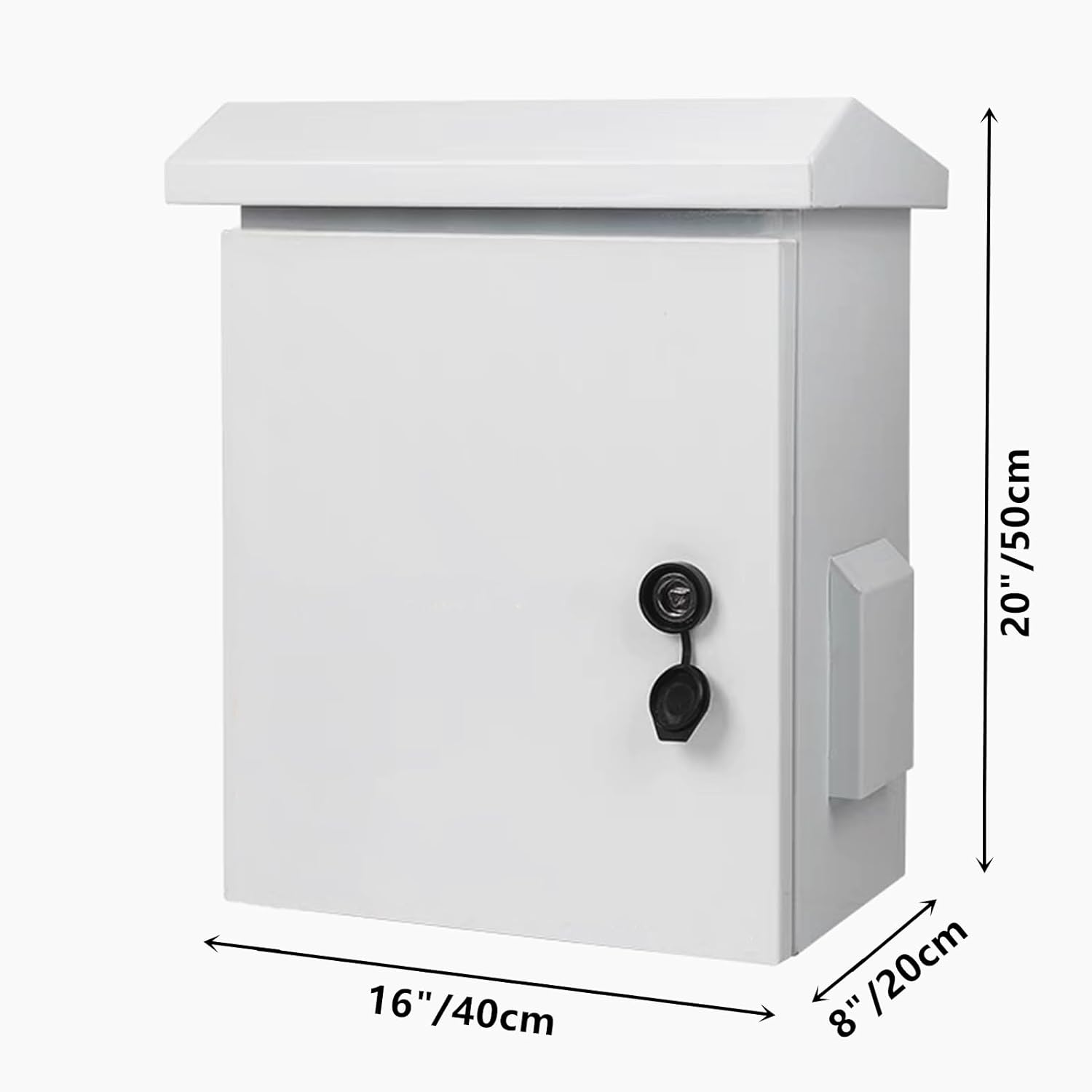

6. How do I know which size of outdoor electrical box to use?
The size of the outdoor electrical box you need depends on the number and size of electrical components you’re using. Always choose a box that can accommodate your components and allows sufficient space for wiring and connections.
7. Can I use an extension cord with outdoor electrical boxes?
No, you should never use an extension cord with outdoor electrical boxes. Extension cords are not designed for outdoor use and can lead to electrical hazards and damage to the components. Always use outdoor-rated cables and wires when installing outdoor electrical boxes.
8. What’s the lifespan of an outdoor electrical box?
The lifespan of an outdoor electrical box depends on various factors, such as the material, the environment, and the frequency of use. Most outdoor electrical boxes can last for several years if maintained properly and used according to their intended purpose.
9. Can I paint an outdoor electrical box?
Yes, you can paint an outdoor electrical box. However, you should use a paint that’s suitable for the box’s material and won’t interfere with its weatherproofing properties. Always follow the manufacturer’s instructions when painting an outdoor electrical box.
10. Can I install an outdoor electrical box underground?
No, you should never install an outdoor electrical box underground. Outdoor electrical boxes are designed to be installed above ground and exposed to the air. If you need to install electrical components underground, use buried conduit or wiring designed for that purpose.
11. What’s the difference between a junction box and a switch/outlet box?
A junction box is a general-purpose box that connects two or more wires. A switch/outlet box is a box that houses a switch, an outlet, or both. The purpose of a junction box is to provide a connection point for wires, while the purpose of a switch/outlet box is to house a switch or an outlet for electrical devices.
12. How do I know if an outdoor electrical box is weatherproof?
An outdoor electrical box that’s weatherproof has a gasket or a seal around the cover to prevent water, dust, and debris from entering the box. Look for boxes that are rated as NEMA 3R or higher, which means they’re suitable for outdoor use and can withstand rain, sleet, and snow.
13. How do I maintain my outdoor electrical box?
To maintain your outdoor electrical box, inspect it regularly for signs of wear and tear, such as cracks, rust, or corrosion. Clean the box with a dry or damp cloth, and avoid using abrasive cleaners that can damage the box’s surface. If you notice any damage or faulty components, replace them immediately.
Conclusion
We hope this comprehensive guide on outdoor electrical boxes has been helpful and informative for you. Remember to follow safety measures when working with electricity, choose the right type of box for your needs, and install it properly to ensure years of safe and efficient use. If you have any questions or comments, feel free to leave them in the section below.
Stay safe and happy wiring!
